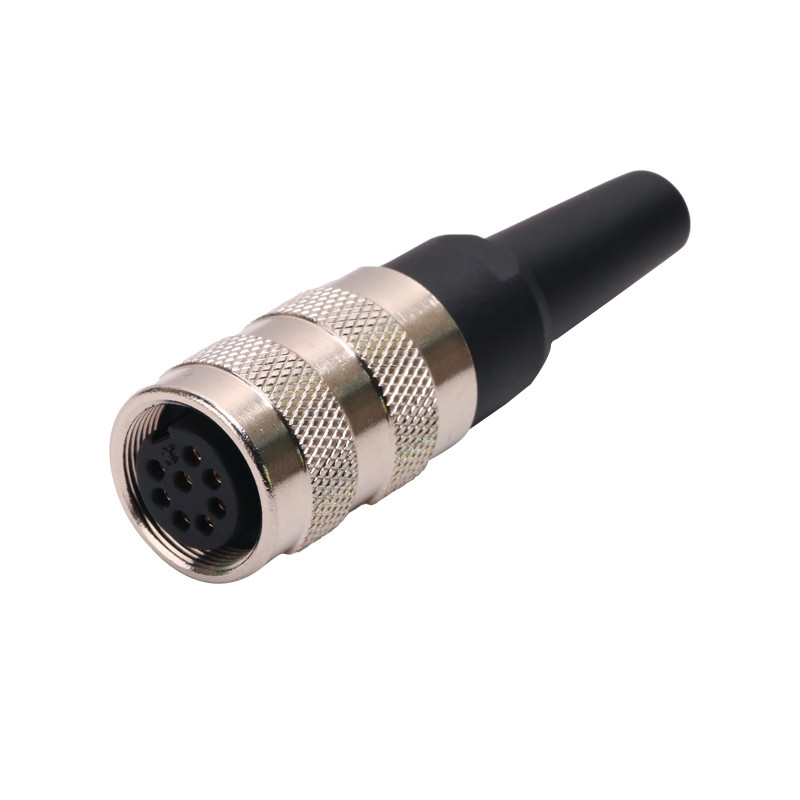

IP67 PA66 M16 여성 방수 커넥터 EN 61984 곧은 원형커넥터

100
MOQ
negotiable
가격
IP67 PA66 M16 여성 방수 커넥터 EN 61984 곧은 원형커넥터
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
오리엔테이션: 일직선
IP 평가: IP67
타입: 자동화, 센서 콘넥터
에워싼 템페라투: -25C ~ + 85' C
표준: IEC 61076-2-105
메이팅 내구성: ≥500
커넥터 삽입부: PA66+30%GF
절연 저항: ≥100
접촉 저항: ≤5
접점 재료: (금도금된) 구리
하이 라이트:

PA66 M16 여성 방수 커넥터

,

IP67 M16 여성 방수 커넥터

,

EN 61984 곧은 원형커넥터

기본 정보
원래 장소: 중국 심천
브랜드 이름: Rigoal
인증: CE , Rohs , IP67
모델 번호: M16 플라스틱 스트레이트 타입
결제 및 배송 조건
포장 세부 사항: 46x30x30
배달 시간: 30Work 일
지불 조건: L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램
공급 능력: 100000
제품 설명

M16 female install waterproof connector

Product types IP65 IP67 electrical plug socket m16 series 7 8 12 14 16 19 24 pin pole waterproof straight circular connector
Design Standard IEC/EN 61984 Binder
Cable diameter ≤Ф 6.0mm~ ≤Ф 8.5mm
Shell material Zinc alloys with nikelplate
Contact material copper( silver/ gold plated)
Insert material PA66+GF20%
Assemble way assemble board
Solder cup mouth aperture 0.6~1
Solder inter diameter 0.5~1.5
Rated current/voltage 5A~7A, 60V~200V
Operation limit voltage(AC.V.rms) 125V~250V
Withstanding voltage( AC.V.rms) 1minute 500, 1500
Insulation resistance (MΩ MIN) at DC 500V 1000, 1500
contact resistance (MΩ MAX.) at DC 1A 7~12
Mating cycle 500
MOQ 1 PCS sample offer
Places of origin China Guangdong
OEM Yes,we accept
Payment terms 100 % T/T,escrow,MasterCard credit card,e-Checking,Paypal,VISA
Delivery time 3-45 days depends on buying stock or OEM order



About M16 connectors:

This series connectors are widely used in the aerospace, military, automotive, electric power, mechanical, automation, as well as the electrical service industry. We design and produce according to international and the U.S. military standard, our products can substitute European, US and Taiwan connectors, own the same quality.


image001(001)

• M16 CIRCULAR CONNECTOR WITH M16*1.0 SCREW LOCKING EQUIVALENT TO BINDER, PHOENIX, LUMBURGER AUTOMATION

• WATERPROOF RATING IS IP67, PROTECTED FROM DUST AND WATER DURING IMMERSION, RESISTANT TO MANY OILS AND CHEMICAL

image003(001) image005(001)
image007(001) image009(001)



Certifications




Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.



Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!

image022_




FAQ

Q1. Are you a manufacturer or trading company?
We are a professional manufacture of waterproof connectors with our own factory and trading company.

Q2. What is the lead time?
Normally speaking, it asks for 5-30 days for mass production except during observed holidays.

Q3. How about 4. OEM/ ODM Service?
Our professional R&D dept develop different products for different target prices and different requirements.

Q4. What certification do you have?
The electrical connector have got CE Rohs UL certification for our products.

Q5. What's your term of payment?
We prefer to T/T,escrow,MasterCard credit card,e-Checking,Paypal.
