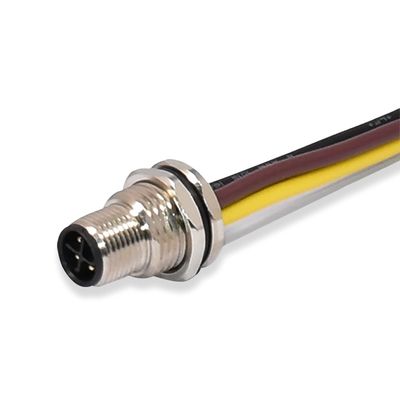

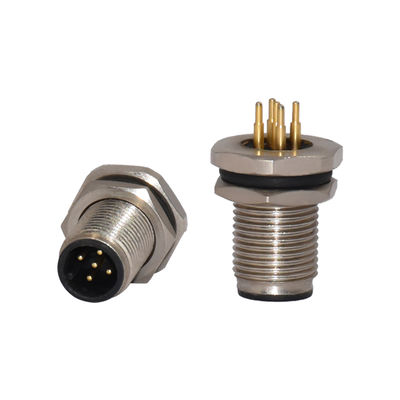

IP67 Screw Waterproof Electrical Panel Mount Socket M12 Cable Connector
High-performance M12 panel mount connector with superior waterproof protection and versatile mounting options.
Key Features
- M12×1 thread locking mechanism with anti-vibration design
- Quick connect/disconnect coupling for easy installation
- Multiple pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions
- Available in A, B, C, D, K, L, X, S, T coding options
- IP67/IP68 waterproof rating for harsh environments
- Wide temperature range: -25°C to +85°C
- Multiple termination options: solder cup or PCB mount
- Available in panel mount and distribution versions
- Offered as loose pieces or pre-made M12 cables

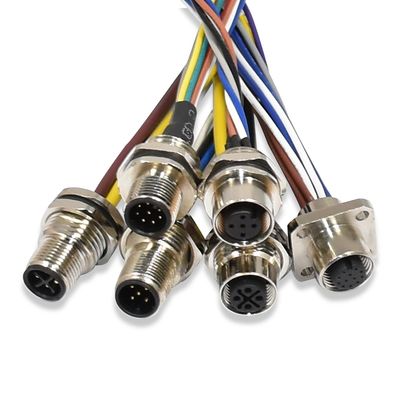

The M12 Panel Receptacle series provides three mounting choices: PCB Mount, Panel Mount & Cable, with three mounting features: Front Mount, Back Mount, and 4 Hole Flange. Complies with IEC 61076-2-101/104 standard and IP67 protection level.
Technical Specifications
| Specification |
Value |
| Place of Origin |
Shenzhen, China |
| Brand Name |
RIGOAL |
| Model Number |
m12 panel mount solder |
| Type |
ADAPTER |
| Application |
Electronic |
| Gender |
Male |
| Pins |
5P, 12p, 7P, 24P, 3P, 8P, 2P, 6P |
| Coding |
A / B / C / D / K / L / X / S / T Code |
| Temperature Range |
-25°C ~ +85°C |
| Rated Voltage |
DC60V AC50V |
| Contact Material |
Brass, gold plated |
| Mating cycle |
>100 times |
| Rated Current |
0.5A |
| Termination Style |
Solder Type / PCB Mount |
| Mounting Feature |
Front Mount / Back Mount / 4 Hole Flange |
| Mounting Type |
PCB Mount / Panel Mount / Cable |
| Number of Positions |
2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN |
Packaging & Delivery
M8 molded waterproof cable available in two packaging sizes: standard packaging with each piece in a PE bag inside a small carton, or customized packaging according to customer requirements.
Company Profile
Founded in 2013, Rigoal specializes in manufacturing high-quality waterproof cables and connectors including M8, M12, M16, M23, and D-SUB types. Our products serve industries such as industrial equipment, transportation, medical devices, LED displays, and communication systems. With exports to America, Europe, and Asia, we maintain high standards equivalent to leading brands like Phoenix and Molex. Our philosophy emphasizes customer service, quality, and innovation.
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2014, we export to Western Europe (18%), North America (13%), Oceania (13%), South America (10%), and other global markets. Our team consists of 101-200 professionals.
How can we guarantee quality?
We conduct pre-production samples before mass production and final inspections before shipment to ensure product quality.
What can you buy from us?
We specialize in waterproof connectors and cables, including various M-series and D-SUB connectors.
Why should you buy from us?
Rigoal designs and manufactures high-quality waterproof connectors for industrial, medical, and transportation applications, comparable to leading international brands.
What services can we provide?
We accept various delivery terms (FOB, CIF, etc.) and payment methods (T/T, L/C, PayPal, etc.), with multilingual support including English, Chinese, Spanish, and more.
